| E-4F |
|

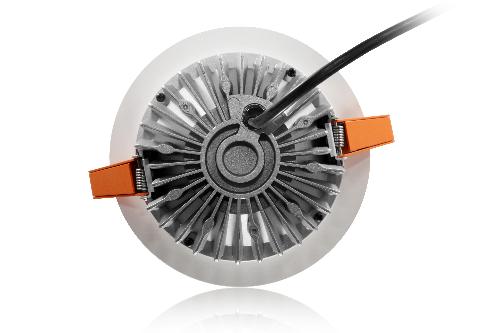

| 18W LED Downlight (External) |
|
|
Characteristic:
- Medium size of EcoWhite downlight series, come with stronger heatsink and higher lumen output
- Original and robust fixing clip design for long standing time and maintenance free
- High quality diffuser and reflector, advanced optical system generate comfortable and uniform light. (UGR 19)
- IP44 Protection Class to grade guarantee system to be moisture and insect proof
- High Lumen output powered by CREE XP-G LED with consistent color temperature
- Typical output at standard 22W: 1200Lm for 3000K; 1400Lm for 4000K to replace 2*18W CFL downlight or 35W metal halide downlight
- Complete kit with Dimmable (Triac) driver
Specifications:
|
Part Number
|
22W LED Downlight
|
|
E4F
|
|
Power Consumption
|
W
|
22W
|
|
Color Temp
|
Kelvin
|
3000K
|
4000K
|
|
Lumens
|
lm
|
120lm
|
1300lm
|
|
Color Rendering
|
Ra
|
>85
|
>85
|
|
Beam Angle
|
Deg
|
80ﾟ
|
|
Dimension
|
mm
|
Dia. 147 x 80mm at heat sink
|
|
Weight
|
g
|
680g
|
|
Cutout
|
mm
|
125mm
|
|
Operating Temp
|
℃
|
-30~60℃
|
|
Storage Temp
|
℃
|
-30~80℃
|
|
Standard Compliance
|
CE
|
IEC60598-1
|
|
Module
|
IEC62031
|
|
Protection Class
|
IP
|
IP44
|
|
Life Time
|
Hrs
|
35,000hrs or above
|
|
Guarantee
|
Yrs
|
3 years
|
|
|
